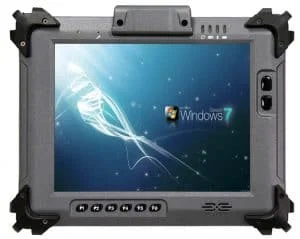

Rugged mobile Tablet
IP54
Hot-swappable Redundant Dual-batteries
| System | |
| CPU | Intel® Atom™ Z530P 1.6GHz processor |
| Graphics Controller | Intel® GMA 500 |
| Memory | 2GB DDR2 SO-DIMM memory module installed |
| Chipset | Intel® System Controller Hub US15WPT |
| BIOS | AMI BIOS |
| Audio | 1 x Integrated microphone 1 x Integrated 1.5W speaker |
| Storage | 1 x 32GB 1.8” SATA SSD |
| Peripherals and Devices | |
| Camera | 1 x 2.0 megapixels AF CMOS camera |
| RFID | Integrated ISO 15693/14443A/14443B RFID Reader (distance: 3~5cm; speed: 5 cards/sec) (optional) |
| Wi-Fi | Integrated WLAN 802.11 b/g/n |
| Bluetooth | Integrated Bluetooth 2.1 + EDR |
| GSM/UMTS | Optional HSUPA module (3.75G) for GSM/GPRS/EDGE, EV-DO networks |
| GPS | Integrated GPS receiver (optional) |
| Barcode Scanner | Integrated 1D/2D Barcode Scanner (optional) |
| SIM Socket | 1 x SIM socket (located underneath the battery pack) |
| Hand Strap | 1 x Black elastic hand strap |
| I/O Interface | |
| Serial Port | 1 x RS-232 port |
| USB Port | 2 x USB 2.0 ports |
| Docking Port | 1 x 35-pin pogo connector for docking connection |
| Button & Indicator | |
| Function Keys | 6 x Function keys 2 x Menu buttons on the front 2 x Barcode Scanner trigger button on the sides |
| Power Button | 1 x Power on/off button on the right side |
| Touch Screen | |
| Type | Analog Resistive Touch |
| Light Transparency | 76% (typ.) |
| Controller Interface | USB Interface |
| Power Supply | |
| Adapter Input | 100 ~ 240VAC (Full Range) |
| Adapter Output | 19VDC, 3.42A, 65W |
| Battery Type | Li-battery pack |
| Battery Capacity | 2 x 2500mAH 3-cell |
| Battery Operating Time | 8 hours (typ.) |
| Mechanical & Environmental | |
| Discharging Temp. | -20 ~ 45ºC (-4 ~ 113ºF) |
| Charging Temp. | 0 ~ 40ºC (32 ~ 104ºF) |
| Operating Humidity | 10 ~ 95% @ 45ºC (non-condensing) |
| Dimensions (W x H x D) | 188 x 240 x 47 mm (7.4” x 9.45” x 1.85”) |
| Gross Weight | 1.8 kg (3.9 lb) |
| Vibration | 3 Grms/ 5 ~ 500Hz/ random operation |
| Shock | 75G peak acceleration (11 ms duration) |
| Transit Drop | 6 ft. (182 cm) drop to concrete |
| IP Rating | IP54 (whole unit) |
| Regulatory | CE/FCC Class B Certified |
| LCD Display | |
| Size/Type | 8″ active matrix TFT |
| Max. Resolution | 1024 x 768 (XGA) w/ 16.2M colors |
| Luminance | 700 cd/m² (typ.) |
| Contrast Ratio | 700 : 1 |
| View Angle (U/D/R/L) | 30°/30°/30°/30° |
| Backlight Type | LED |
| Touch Screen | |
| Type | Analog Resistive Touch |
| Light Transparency | 76% (typ.) |
| Controller Interface | USB Interface |
| Power Supply | |
| Adapter Input | 100 ~ 240VAC (Full Range) |
| Adapter Output | 19VDC, 3.42A, 65W |
| Battery Type | Li-battery pack |
| Battery Capacity | 2 x 2500mAH 3-cell |
| Battery Operating Time | 8 hours (typ.) |
| Mechanical & Environmental | |
| Discharging Temp. | -20 ~ 45ºC (-4 ~ 113ºF) |
| Charging Temp. | 0 ~ 40ºC (32 ~ 104ºF) |
| Operating Humidity | 10 ~ 95% @ 45ºC (non-condensing) |
| Dimensions (W x H x D) | 188 x 240 x 47 mm (7.4” x 9.45” x 1.85”) |
| Gross Weight | 1.8 kg (3.9 lb) |
| Vibration | 3 Grms/ 5 ~ 500Hz/ random operation |
| Shock | 75G peak acceleration (11 ms duration) |
| Transit Drop | 6 ft. (182 cm) drop to concrete |
| IP Rating | IP54 (whole unit) |
| Regulatory | CE/FCC Class B Certified |
